deafsafe™ Ultra : fire alarm paging

We utilize the latest digital technology with our alpha text messaging paging systems and as a fire alarm solution for deaf people this is probably the best deaf person fire alarm system available if you can even find any! but best of all this system meets (and is compliant with) BS5839-1:2013 where other systems may well not be For smaller non-compliant fire-alarm alerting solutions check out our DeafSafe™ Integra Deaf Person Fire Alarm Paging System that offers a low cost installable device for non-compliant systems.

DeafSafe™ Ultra is our solution to enable deaf persons to be contacted immediately in the case of a fire within your premises by a personal text messaging and strong vibrating alphanumeric pager(s). The System handles 999 pagers so as far as users are concerned the system is almost limitless. We can also cover very large areas so range is not an issue either.

The DeafSafe™ Ultra system comprises of a BS5839 PART1 & PART6 compliant transmitting unit and pagers in a compliant alarm battery case assembly. Our AP2 and CT alphanumeric pager specifications are available HERE

The housing of our unit has a continuous fire resistance for a minimum of 30 minutes and easily attaches to ANY fire alarm system; Our battery and power supply has internal tests and if there is an issue we can message selected staff as notification of any issues on the panel so it can be immediately fixed.



We utilized long life sealed batteries and our system can handle up to 17.0Ah capacities depending on the installation (check the features for the system). Features do change depending on legislation and we follow specifics accordingly.

Our fire alarm messaging system is warranted by us directly so you can be sure that we can resolve issues quickly when necessary.

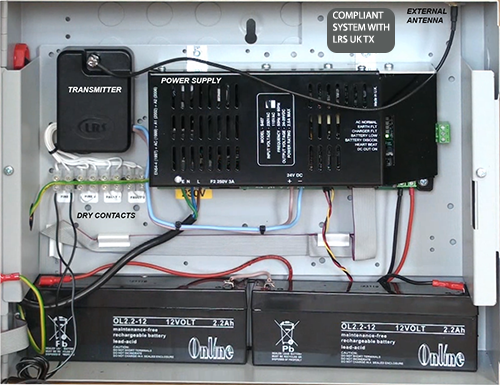

Here's an image of the inside of the Ultra system - but this is just an example:



DeafSafe™ Ultra is compatible with all fire alarm systems and is suitable for:

•  All public and private buildings
•  Any premises where Deaf persons either visit or are employed
•  Where you NEED to comply with deaf person Fire Alarm Paging Standards (BS5839-1:2013)
•  Removes the need for visual alarm devices to be located in EVERY room



There are companies that claim to 'make' paging systems for deaf persons while on site; it is often suggested that their equipment is 'compliant' with current fire standards in the UK; but sometimes those very systems are far from compliant and probably never will be. We can provide all documentation to confirm the DeafSafe standards.

Our DeafSafe™ Ultra Fire Alarm Paging System is compliant with:

• BS5839-1:2013
• EN54-4



DeafSafe™ Ultra Features:

• 110v or 240v input power
• Intelligent battery charging and temperature compensation
• Houses up to 17.2 Ah batteries
• Status indicators for monitored faults
• Over 85% efficiency of power
• Fully enclosed
• Tamper proof switch output
• Self resetting electrical fuse
• Reprogrammable on site
• AP2 Rechargeable Pager (optional) or CT Pager (optional)
• Tamper-resistant construction
• Strong vibration and beep alert modes on pager
• Battery life of AP2 colour alpha pager from 1 4 hour charge is many days of use
  Battery Life of CT pager is up to 3 months with AAA battery
• Transmitter Box Dimensions vary dependent on requirements
• EN54-4 clause 6.4 and BS5839 part 1 clause 12.2.2.m requirements

DeafSafe™ Ultra Benefits:

• Unique regulation techniques ensure that a stable 24V dc is available to all parts of the system ensuring that all 24V devices connected use optimum power
• Our powerful on-board micro controller ensures all batteries are conditioned with the optimum temperature compensated charging algorithms to maximize the battery life and keep batteries in top conditioning throughout their life
• Optional dual output path available
• Optional dual fused outputs
• Fully Certified and Compliant
• CE Approvals and RoHS compliant components throughout
• Robust pagers with 'pager protectors' (optional) for the rough and tumble of everyday use
• 4 inputs (but optionally up to 8 inputs) on transmitter for multiple uses with auxiliary secondary uses
• Excellent manufacturers warranty for up to 3 years depending on exact system specifications.



*terms apply
